ALPHA ESS

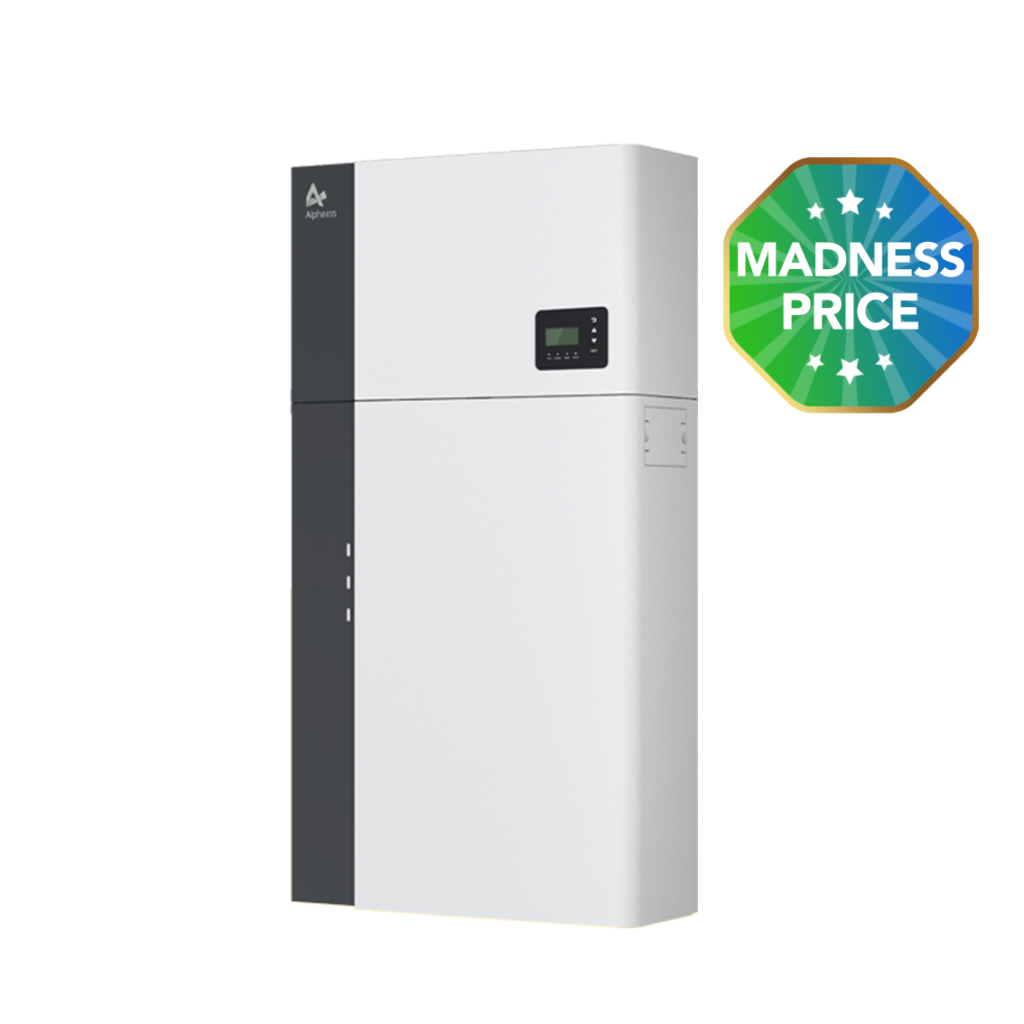

10.1kWh Solar Battery

The AlphaESS SMILE-G3-S5 10.1kWh battery combines reliable LFP battery technology with a 5kW hybrid inverter to provide efficient residential energy storage, solar energy management and backup power. Its modular design allows the battery capacity to be expanded as energy requirements grow.
Solar Battery

ALPHA ESS 10.1kWh Solar Battery – ES-Alpha-Smile-G3-S5-10.1P

.The AlphaESS SMILE-G3-S5 is a 5kW single-phase hybrid energy storage system with a 10.1kWh LFP battery. It provides 9.6kWh usable storage at 95% DoD and can be expanded up to 60.5kWh using additional battery modules.

$5,400.00
Inc. GST / Per Panel
In Stock
Brand AlphaESS
SKU / Model ES-Alpha-Smile-G3-S5-10.1P + SMILE-G3-S5-INV
Warranty 5-Year Product Warranty / 10-Year Battery Performance Warranty
Compatible With
  • AlphaESS SMILE-M5
Add to Cart Download Datasheet
10.1 kWh Rated Power
610 × 230 × 1168 mm (W × D × H, with bracket) Dimensions
Approx. 109.5 kg Weight
Product Description

AlphaESS SMILE-G3-S5 10.1kWh Solar Battery

The AlphaESS SMILE-G3-S5 is a residential energy storage system featuring a 5kW single-phase hybrid inverter and a 10.1kWh LFP battery module. The modular battery design allows storage capacity to be expanded by connecting additional 10.1kWh modules in parallel, with the system supporting capacities up to 60.5kWh. It is designed for solar self-consumption, energy storage and backup applications.

Product Description

Battery Technical Specifications

Specification Value
Model SMILE-G3-S5-10.1P
Battery Chemistry LFP (LiFePO₄)
Nominal Capacity 10.1 kWh
Usable Capacity 9.6 kWh
Depth of Discharge 95%
Nominal Voltage 204.8 V
Battery Management Integrated BMS
Operating Temperature -10°C to +50°C
Protection Rating IP65
Communication CAN / RS485
Application Designed for residential energy storage and backup applications
Compatibility
Inverter
  • Integrated AlphaESS SMILE-G3-S5 5kW Hybrid Inverter
Battery Systems
  • AlphaESS SMILE-G3 Series
System Types
  • Hybrid Solar Systems
  • Energy Self-Consumption
  • Residential Energy Storage
  • Backup Power Systems
  • Solar + Battery Systems
Other
  • Solar PV Systems
  • Energy Management
  • Load Shifting
  • Self-Consumption
  • Backup Power
Documents

Downloads & Documentation

Product Datasheet Technical specifications & performance data
PDF Download
Installation Manual Mounting, wiring & commissioning guide
PDF Download
Warranty Document Full 25-year performance warranty terms
PDF Download
MCS Product Certificate MCS approval certificate for installations
PDF Download
