ANKER SOLIX 5kWh
5kWh Solar Battery
X1-B5-H

The Anker SOLIX X1 5kWh battery provides high-voltage LFP energy storage with a modular design that allows storage capacity to be expanded as household energy requirements grow. The battery is IP66 rated and designed for reliable residential energy storage and backup applications
Solar Battery

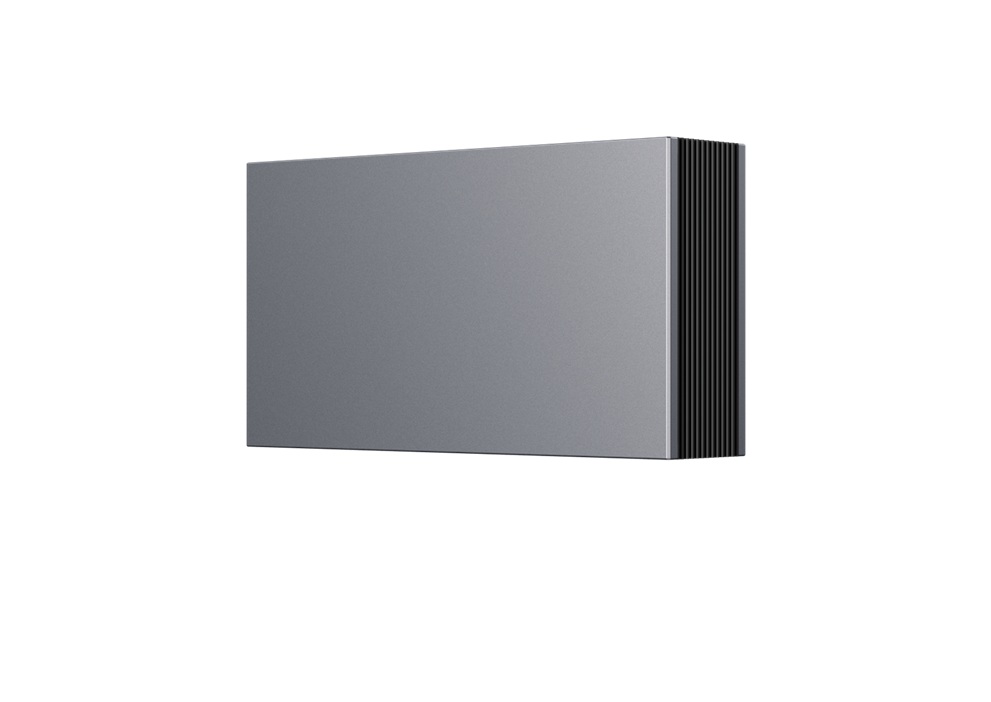

ANKER SOLIX 5kWh Solar Battery – X1-B5-H

The Anker SOLIX X1-B5-H 5kWh battery module is a high-voltage LFP energy storage solution designed for residential solar applications. With 5kWh battery energy, up to 3kW charge/discharge power, IP66 protection and a 10-year warranty, it provides scalable energy storage as part of the Anker SOLIX X1 system.

$1,500.00
Inc. GST / Per Panel
In Stock
Brand ANKER SOLIX
SKU / Model ES-BAT-X1-B5-H
Warranty 10-Year Warranty
Compatible With
  • Anker SOLIX X1 Energy Storage System
Add to Cart Download Datasheet
670 × 360 × 150 mm Dimensions
73.5 kg Weight
IEC 62619, IEC 62040-1, VDE-AR-E 2510-50, UN38.3 Certificate
Product Description

Anker SOLIX X1 5kWh Battery Module

The Anker SOLIX X1-B5-H is a high-voltage lithium iron phosphate (LFP) battery module designed for residential energy storage. With a 5kWh battery energy capacity, the module forms part of the modular Anker SOLIX X1 energy storage system and can be combined with additional battery modules to expand total storage capacity. The battery supports up to 3kW maximum charge/discharge power and is designed for residential solar energy storage and backup applications.

Product Description

Battery Technical Specifications

Specification Value
Model X1-B5-H
Battery Type Lithium Iron Phosphate (LFP / LiFePO₄)
Battery Chemistry Li-ion (LFP)
Battery Energy 5 kWh
Usable Capacity 5 kWh*
Battery Voltage Range 350–550 VDC
Maximum Charging Power 3 kW
Maximum Discharging Power 3 kW
Maximum Charge/Discharge Current 7.6 A
Dimensions 670 × 360 × 150 mm
Weight 51 kg
IP Rating IP66
Operating Temperature -20°C to +55°C
Maximum Operating Altitude Up to 4,000 m; power derating from 2,000 m
Warranty 10 years
Compatibility
Inverter
  • Anker SOLIX X1 Power Module / compatible X1 system
Battery Systems
  • Anker SOLIX X1 Series
System Types
  • Hybrid Solar Systems
  • Battery Energy Storage Systems
  • Residential Energy Storage
  • Backup Power Systems
Other
  • Solar PV Systems
  • Energy Management
  • Load Shifting
  • Self-Consumption
  • Backup Power
Documents

Downloads & Documentation

Product Datasheet Technical specifications & performance data
PDF Download
Installation Manual Mounting, wiring & commissioning guide
PDF Download
Warranty Document Full 25-year performance warranty terms
PDF Download
