Solar Battery
SolaX 5.1kWh Solar Battery Module – T-BAT HS51
5.1 kWh · IEC 62619 / IEC 62040 / EN 62477 / VDE 2510
$5,400.00
Learn More

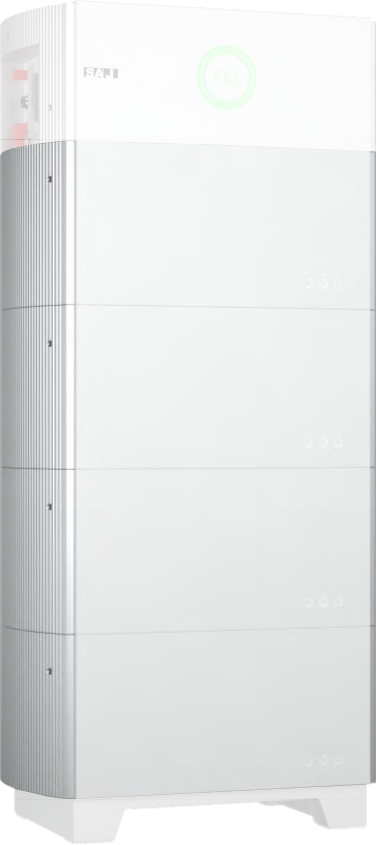

The SAJ B2-5.0-HV5-PLUS is a 5.0 kWh high-voltage LiFePO₄ battery module with 4.8 kWh usable energy and 102.4 V nominal voltage. It provides 3.072 kW rated power and can be used as part of a scalable SAJ B2 HV battery system up to 25.0 kWh.
“SAJ 5.0kWh Battery Module
The SAJ B2-5.0-HV5-PLUS is a high-voltage lithium iron phosphate (LiFePO₄) battery module designed for residential solar energy storage applications. With 5.0 kWh rated energy and 4.8 kWh usable capacity, it provides reliable high-voltage energy storage with modular expansion capability for compatible SAJ B2 battery systems.”
Battery Technical Specifications
| Specification | Value |
|---|---|
| Model | B2-5.0-HV5-PLUS |
| Battery Module | BU2-5.0-HV5 (32S1P 102.4V 50Ah) |
| Battery Chemistry | LiFePO₄ |
| Rated Energy | 5.0 kWh |
| Usable Energy | 4.8 kWh |
| Depth of Discharge | 90% |
| Rated Power | 3.072 kW |
| Nominal Voltage | 102.4 V |
| Operating Voltage | 89.6–115.2 V |
| Maximum Charge Current | 30 A |
| Maximum Discharge Current | 30 A |
| Maximum Fault Current | 100 A |
| Charging Temperature | -10°C to +50°C |
| Discharging Temperature | -10°C to +50°C |
| Ambient Humidity | 0–95% non-condensing |
| Cooling Method | Natural convection |
| Communication | CAN |
| IP Rating | IP65 |
| Mounting | Wall-Mounted (optional) / Ground-Mounted |
| Number of Modules | 1 module for 5.0 kWh configuration |
| Scalability | Up to 5 modules / 25.0 kWh per stack |
