SUNGROW 5kWh Solar Battery Module – ES-SGR-SBH
CE / CEC / IEC 62619 / IEC 62040 / UN38.3 / VDE 2510-50 / IEC 62477 / IEC 63056
$5,400.00
Learn More
The SolaX TB-HS510 is a 5.1 kWh high-voltage LFP battery module designed for SolaX HS51 energy storage systems. Multiple modules can be stacked to create systems from approximately 10.2 kWh up to 66.5 kWh nominal capacity.

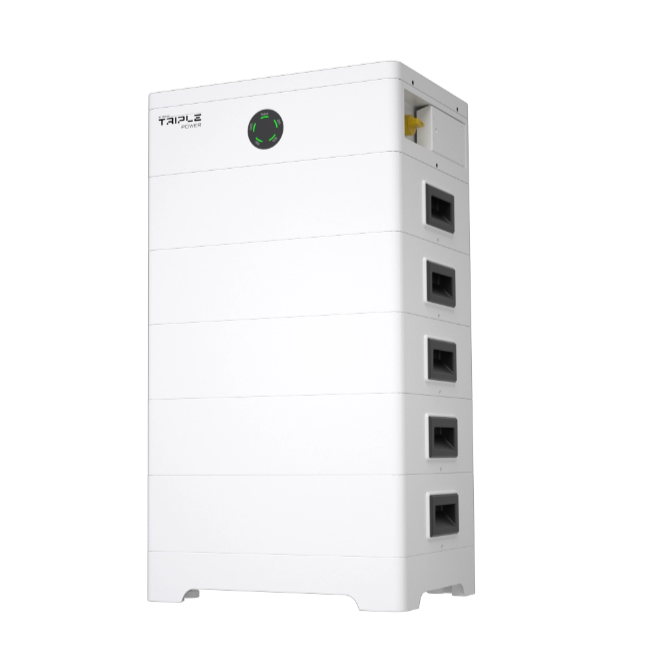

SolaX TB-HS510 5.1kWh Battery Module
The SolaX TB-HS510 is a high-voltage lithium iron phosphate (LFP / LiFePO₄) battery module designed for SolaX T-BAT HS51 energy storage systems. Each module provides 5.1 kWh of nominal energy and multiple modules can be connected in series to create larger high-voltage battery systems.
Battery Technical Specifications
| Specification | Value |
|---|---|
| Model | TB-HS510 / TB-HS51 |
| Module Capacity | 5.1 kWh |
| Battery Chemistry | Lithium Iron Phosphate (LFP / LiFePO₄) |
| Nominal Voltage | 51.2 V |
| Operating Voltage | 42.4–57.8 V DC |
| Nominal Capacity | 100 Ah |
| Maximum Charge / Discharge Current | 70 A |
| Cycle Life | >6,000 cycles at 90% DoD |
| Dimensions | 600 × 168 × 376 mm |
| Weight | Approx. 46 kg / 47.1 kg with optimizer |
| Ingress Protection | IP66 |
| Installation | Stackable / Floor mounting |
| System Type | High-Voltage Energy Storage |
Product Datasheet
Technical specifications & performance data
