SIGENERGY SIGEN
EV AC CHARGER
11kW

The Sigenergy Sigen EV AC Charger 11kW provides intelligent three-phase EV charging with solar charging, Solar Boost, dynamic load management and smart charging control through the mySigen App.
EV Charger

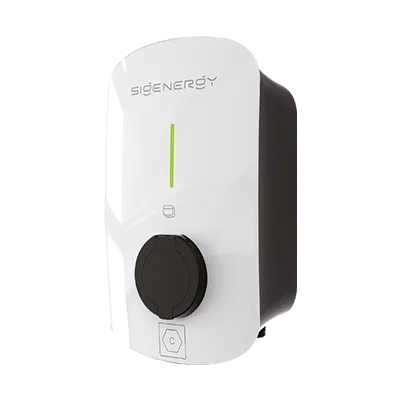

SIGENERGY SIGEN EV AC CHARGER 11kW

The Sigenergy Sigen EV AC Charger 11kW is a three-phase smart AC EV charger with 100% PV charging, Solar Boost, fast charging, scheduled charging, dynamic load management and mySigen App monitoring. Its IP65-rated design and wall/pole mounting make it suitable for indoor and outdoor installations.

$1.00
Inc. GST / Per Panel
In Stock
Brand SIGENERGY
SKU / Model Sigen EVAC 11 4G T2 WH
Warranty 3 Year – Australian product listings specify a 3-year warranty.
Compatible With
  • Sigenergy SigenStor Home Energy Solution and compatible energy-management systems
Add to Cart Download Datasheet
11 kW Rated Power
3 Year – Australian product listings specify a 3-year warranty. Performance Warranty
234 × 384 × 126 mm (W × H × D) Dimensions
4.5 kg (Case B) / 6.4 kg (Case C) Weight
Product Description

Sigenergy Sigen EV AC Charger 11kW

The Sigen EV AC Charger 11kW is a three-phase AC EV charger designed for residential and light-commercial electric vehicle charging. It supports 100% PV charging, Solar Boost charging, fast charging, dynamic load management and smart monitoring through the mySigen App. It features 4G, WLAN and Ethernet communication, integrated residual-current protection and IP65 protection for indoor or outdoor installation.

Product Description

EV Charger Technical Specifications

Specification Value
Rated Charging Power 11 kW
Nominal Input/Output Voltage 220–240 V / 380–415 V AC
Phase 3 Phase
Output Current 6–16 A
AC Frequency 50 / 60 Hz
Grounding System TT / TN / IT
Communication 4G / WLAN / Fast Ethernet
Communication Protocol RS485 / Modbus RTU
OCPP OCPP 1.6J ED 2
Authentication RFID Card / App / Auto-Charge
Metering External Meter with RS485 / Integrated Metering IC
Cooling Natural Convection
Operating Temperature -30°C to +55°C
Relative Humidity 5%–95%
Maximum Operating Altitude 4,000 m
Standby Consumption <3.6 W
Ingress Protection IP65
Charging Modes 100% PV Charging / Solar Boost Charging / Fast Charging / Scheduled Charging
Solar Charging Yes – 100% PV charging and Solar Boost charging
Battery Integration Yes – compatible with the Sigenergy home energy solution for coordinated solar, battery and EV energy management
Monitoring mySigen App
Dynamic Load Control Yes – Dynamic Load Management supported; requires Sigen Power Sensor for the documented dynamic-load-management function.
Protection Integrated DC fault detection: 6 mA
Integrated AC fault detection: 30 mA
Over/Under Voltage Protection
Overload Protection
Over Temperature Protection
PEN Protection
Ground Fault Protection
Surge Protection
Randomised Charging Delay
Connector Type 2 tethered connector
Compatibility
Inverter
  • Sigenergy SigenStor system / compatible third-party inverter with Sigen Power Sensor
Battery Systems
  • Sigenergy SigenStor Battery / compatible energy storage systems
System Types
  • Residential EV Charging
  • Commercial EV Charging
  • Solar EV Charging
  • PV + Battery EV Charging
  • Solar EV Charging
Other
  • mySigen App
  • RFID Authentication
  • Dynamic Load Management
  • Scheduled Charging
  • 4G / WLAN / Ethernet
  • OCPP 1.6J
EV Compatibility
  • EVs supporting IEC Type 2 AC charging
