SIGENERGY SIGEN
EV DC CHARGING
MODULE 12kW

The Sigenergy Sigen EV DC Charging Module delivers up to 12.5 kW DC charging with direct integration into the SigenStor energy system, supporting solar charging, battery boost charging, smart load management and future V2X applications.
EV Charger

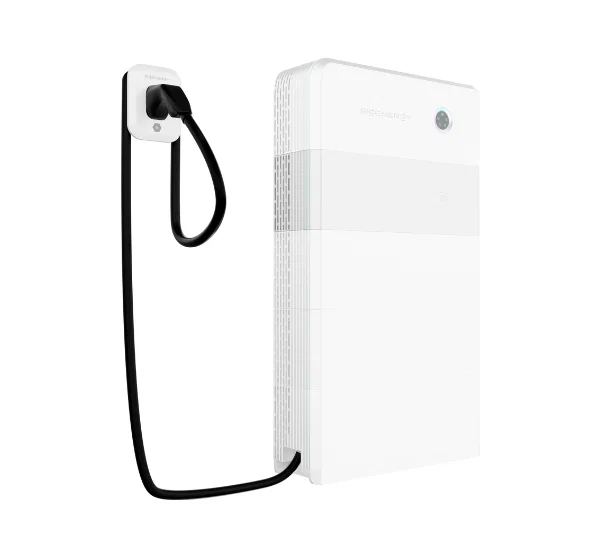

SIGENERGY SIGEN EV DC CHARGING MODULE 12kW

The Sigenergy Sigen EV DC Charging Module 12kW is a DC charging module for the SigenStor energy system, delivering up to 12.5 kW DC charging through a CCS2 connector. It supports PV surplus charging, scheduled charging, fast charging, Battery Boost Charging and smart load management, with IP66 protection and smart air cooling.

$1.00
Inc. GST / Per Panel
In Stock
Brand SIGENERGY
SKU / Model SigenStor EVDC 12
Warranty 3 Year – Australian product listings specify a 3-year warranty.
Compatible With
  • Sigenergy SigenStor Energy Controller / SigenStor 5-in-One system
Add to Cart Download Datasheet
12.5 kW maximum Rated Power
3 Year – Australian product listings specify a 3-year warranty. Performance Warranty
700 × 270 × 260 mm (W × H × D) Dimensions
37 kg with 5 m cable / 39 kg with 7.5 m cable / 41 kg with 10 m cable Weight
Product Description

Sigenergy Sigen EV DC Charging Module 12kW

The Sigen EV DC Charging Module is a DC EV charging module designed specifically for the Sigenergy SigenStor energy system. It provides up to 12.5 kW DC charging, allowing direct DC energy transfer from the SigenStor system to an EV. It supports PV surplus charging, scheduled charging, fast charging, battery boost charging and grid charging, together with smart load management and bidirectional V2X functionality where supported by the EV.

Product Description

EV Charger Technical Specifications

Specification Value
Maximum Charging Power 12.5 kW
Maximum Discharging Power 12.5 kW
Output Voltage Range 150–1000 V DC
Maximum Operating Current 40 A
Charging Interface CCS2
Cooling Smart Air Cooling
Ingress Protection IP66
Operating Temperature -30°C to +60°C
Storage Temperature -40°C to +70°C
Relative Humidity 5–95%
Maximum Operating Altitude 4,000 m
Communication App / RFID
OCPP OCPP 1.6J ED 2
Charging Modes Scheduled Charging / PV Surplus Charging / Fast Charging / Battery Boost Charging / Grid Charging
Solar Charging Yes – PV surplus charging with prioritisation of surplus PV energy
Battery Integration Yes – can integrate with the Sigenergy home energy solution for coordinated PV, battery and EV charging
Monitoring mySigen App
Dynamic Load Control Yes – smart load management
Protection Short-Circuit Protection
Over / Under Voltage Protection
Overload Protection
Over Temperature Protection
Reverse Polarity Protection
Welded Contactor Check
Connector CCS2 / CCS Combo 2
Compatibility
Inverter
  • Sigenergy Sigen Energy Controller / SigenStor 5-in-One system
Battery Systems
  • Sigenergy SigenStor Battery
System Types
  • Residential EV Charging
  • Solar EV Charging
  • PV + Battery EV Charging
  • DC EV Charging
  • Smart EV Charging
  • V2X-capable Energy System
Other
  • mySigen App
  • RFID Authentication
  • Smart Load Management
  • PV Surplus Charging
  • Battery Boost Charging
  • Scheduled Charging
  • Fast Charging
  • OCPP 1.6J ED 2
  • OTA / Remote Diagnostics
EV Compatibility
  • EVs supporting IEC Type 2 AC charging
