SigenStor BAT 8.0kWh
Solar Battery
Sigenergy

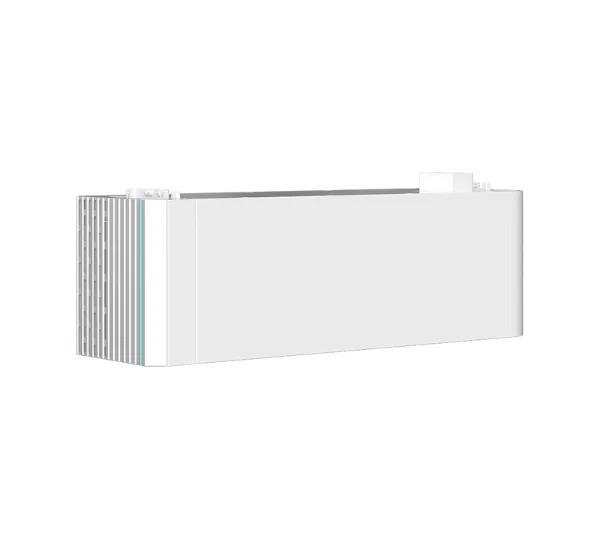

SigenStor BAT 8.0 Battery The Sigenergy SigenStor BAT 8.0 is a high-voltage lithium iron phosphate (LFP / LiFePO₄) battery designed for residential and energy storage applications. It provides 8.06 kWh total energy capacity and 7.8 kWh usable energy capacity, with modular scalability for compatible SigenStor energy storage systems.
Solar Battery

SigenStor BAT 8.0kWh Solar Battery – Sigenergy

The Sigenergy SigenStor BAT 8.0 is an 8.06 kWh high-voltage LFP battery with 7.8 kWh usable energy capacity. It supports up to 4 kW continuous charge/discharge power and can be combined with additional Sigen battery modules for scalable energy storage systems.

$5,400.00
Inc. GST / Per Panel
In Stock
Brand Sigenergy
SKU / Model SigenStor BAT 8.0
Warranty 10-Year Limited Warranty
Compatible With
  • SigenStor EC Series Energy Controllers / compatible Sigenergy energy storage systems
Add to Cart Download Datasheet
10-Year Limited Warranty Performance Warranty
767 × 270 × 260 mm (W × H × D) Dimensions
Approx. 70 kg Weight
IEC/EN 60730-1 / UN 38.3 / IEC/EN 62619 / IEC/EN 63056 / IEC/EN 62040 Certificate
Product Description

SigenStor BAT 8.0 Battery

The Sigenergy SigenStor BAT 8.0 is a high-voltage lithium iron phosphate (LFP / LiFePO₄) battery designed for residential and energy storage applications. It provides 8.06 kWh total energy capacity and 7.8 kWh usable energy capacity, with modular scalability for compatible SigenStor energy storage systems.

Product Description

Battery Technical Specifications

Specification Value
Model SigenStor BAT 8.0
Total Energy Capacity 8.06 kWh
Usable Energy Capacity 7.8 kWh
Battery Chemistry Lithium Iron Phosphate (LFP / LiFePO₄)
Cell Capacity 280 Ah
Depth of Discharge 100%
Maximum Charge / Discharge Power 4.0 kW
Peak Charge / Discharge Power 6.0 kW for 10 seconds
Maximum Charge / Discharge Current 12.0 A
Battery Voltage Range 300–600 V single-phase / 600–900 V three-phase
Cooling Natural convection
Communication Integrated battery management and system communication
Operating Temperature -20°C to +55°C
Installation Floor standing / Wall-mounted
Protection Integrated battery management and multi-layer safety protection
System Type High-Voltage Energy Storage
Compatibility
Inverter
  • Compatible with Sigenergy SigenStor EC Series Energy Controllers and supported Sigenergy energy storage systems
Battery Systems
  • SigenStor BAT Series
System Types
  • Hybrid Solar Systems
  • Battery Energy Storage Systems
  • Residential Energy Storage
  • High-Voltage Energy Storage
  • Backup Power Systems
  • Energy Management Systems
Other
  • Solar PV Systems
  • Energy Management
  • Load Shifting
  • Self-Consumption
  • Backup Power
  • Energy Storage
  • EV Energy Integration
Documents

Downloads & Documentation

Product Datasheet Technical specifications & performance data
PDF Download
