SIGENERGY SIGEN
EV AC CHARGER
7kW

The Sigenergy Sigen EV AC Charger 7kW provides intelligent single-phase EV charging with solar charging, dynamic load management, scheduled charging and smart energy monitoring through the mySigen App.
EV Charger

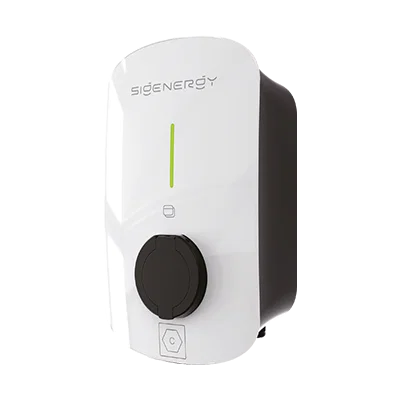

SIGENERGY SIGEN EV AC CHARGER 7kW

The Sigenergy Sigen EV AC Charger 7kW is a single-phase smart AC EV charger featuring solar charging, Solar Boost, scheduled charging, dynamic load management, app monitoring and integrated residual-current protection. It has an IP65-rated enclosure and is suitable for indoor and outdoor installation.

$1.00
Inc. GST / Per Panel
In Stock
Brand SIGENERGY
SKU / Model Sigen EVAC 7 4G T2 WH
Warranty 3 Year – Australian product listings specify a 3-year warranty
Compatible With
  • Sigenergy SigenStor Home Energy Solution
  • compatible third-party PV systems with Sigen Power Sensor
Add to Cart Download Datasheet
7 kW Rated Power
3 Year – Australian product listings specify a 3-year warranty. Performance Warranty
234 × 384 × 126 mm (W × H × D) Dimensions
4.5 kg (Case B) / 6.4 kg (Case C) Weight
Product Description

Sigenergy Sigen EV AC Charger 7kW

The Sigen EV AC Charger 7kW is a single-phase AC EV charger designed for residential and commercial electric vehicle charging. It supports solar-powered charging, scheduled charging, fast charging and dynamic load management. It can integrate with the Sigenergy home energy solution and provides app-based monitoring and control.

Product Description

EV Charger Technical Specifications

Specification Value
Rated Charging Power 7 kW
Nominal Input/Output Voltage 220–240 V
Phase Single Phase
Output Current 6–32 A
AC Frequency 50/60 Hz
Grounding System TT / TN / IT
Communication 4G / WLAN / Fast Ethernet
Protocol RS485 / Modbus RTU
OCPP OCPP 1.6J ED 2
Authentication RFID / App / Auto-charge
Metering External meter with RS485 / Integrated metering IC
Cooling Natural convection
Operating Temperature -30°C to +55°C
Storage Temperature -40°C to +70°C
Relative Humidity 5–95%
Maximum Altitude 4,000 m
Standby Consumption <3.6 W
Charging Modes 100% PV Charging / Solar Boost Charging / Fast Charging / Scheduled Charging
Solar Charging Yes – 100% PV charging and Solar Boost charging
Battery Integration Yes – integrates with the Sigenergy home energy solution for solar/battery/EV energy management
Monitoring mySigen App
Dynamic Load Control Yes – Dynamic Load Management supported; requires Sigen Power Sensor for the documented dynamic-load-management function.
Protection Integrated DC fault detection: 6 mA
Integrated AC fault detection: 30 mA
Over/Under Voltage Protection
Overload Protection
Over Temperature Protection
PEN Protection
Ground Fault Protection
Surge Protection
Randomised Charging Delay
Connector Type 2
Compatibility
Inverter
  • Sigenergy SigenStor system / compatible third-party inverter with Sigen Power Sensor
Battery Systems
  • Sigenergy SigenStor Battery / compatible energy storage systems
System Types
  • Residential EV Charging
  • Commercial EV Charging
  • Solar EV Charging
  • PV + Battery EV Charging
  • Solar EV Charging
Other
  • mySigen App
  • RFID Authentication
  • Automatic Phase SwitcDynamic Load Managementhing
  • Scheduled Charging
  • 4G / WLAN / Ethernet
  • OCPP 1.6J
EV Compatibility
  • EVs supporting IEC Type 2 AC charging
Documents

Downloads & Documentation

Product Datasheet Technical specifications & performance data
PDF Download
